R31,999
Hisense 100Q7Q | 100″ LED 144Hz VRR QLED Gaming TV
Hisense 100Q7Q product description
HISENSE 100Q7Q product features
HISENSE 100Q7Q product specifications
| Product | Commercial model | HISENSE 100Q7Q | ||
| Factory model | 100Q60QAVS | |||
| Factory | Qingdao | |||
| Description | 139cm (55″ ) Direct LED Television | |||
| Document | Specifications form version | HA240116 | ||
| Circulation | Restricted, internal use only | |||
| Status | Confirmed | |||
| Revision number | 1 | |||
| Date | 2024/12/30 | |||
| Issued by | ||||
| Image display | Panel manufacturer | Hisense | ||
| Panel model | LCM:HD550H1U52-T0L9, Open Cell : T550QVN10.8 | |||
| Active display area, horizontal dimension | mm | 1209,6 | ||
| Active display area, vertical dimension | mm | 680,4 | ||
| Screen size (rounded to nearest integer) | cm | 139 | ||
| Screen size (rounded to nearest integer) | inch | 55 | ||
| Display technology | LCD/ LED lit | |||
| Backlight source | Direct LED | |||
| Resolution (Horiz x Vert) | pixel | 3840X2160 | ||
| Screen curvature radius | mm | – | ||
| Colour depth | bit | 8bit+FRC | ||
| Image refresh frequency | Hz | 144 | ||
| Smooth motion rate | 240 | |||
| 3D image | – | |||
| Typical brightness of white | cd/m2 | 350nit | ||
| Native contrast ratio | 4000:1 | |||
| Viewing Angle (Horiz / Vert) | Degrees | 178/ 178 | ||
| Quantum dot | Yes | |||
| Wide colour gamut | Yes | |||
| KSF phosphor | No | |||
| UHD Premium | No | |||
| Response Time | ms | 6 | ||
| Connectivity | RF- Radio frequency input | 1 | ||
| AV input | 1 | |||
| AV output | 0 | |||
| USB interface type 3.0 (Qty / List….) | 0 | |||
| USB interface type 2.0 (Qty / List ….) | 2/ USB2 | |||
| Optical digital audio output (SPDIF) | 1 | |||
| Earphone jack | 0 | |||
| HDMI ports | HDMI inputs | 3 | ||
| HDMI type 8K@60Hz | No | |||
| HDMI type 4K@60Hz with HDCP version 2.2 | Yes | |||
| HDMI 2.1 compliant input | Yes / HDMI 2 & 3 | |||
| Enhanced Audio Return Channel ( eARC) | Yes / HDMI 2 | |||
| CEC- Consumer Electronics Control via HDMI | Yes | |||
| Smart TV | Ethernet port (RJ45 connector) | 1 | ||
| Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ad, ..} | a, b, g, n, ac | |||
| Wi-Fi bands | GHz | 2.4/5.0 | ||
| DLNA compliance | Yes | |||
| Bluetooth / BT version | Yes / 5.0 | |||
| Anyview (Screen mirroring) | Yes | |||
| BVOD services (Iview, SBS on Demand, 9Now, 7Plus, Tenplay) | Iview, SBS on Demand, 9Now，tenplay | |||
| Installed Applications {List ……} | ||||
| Freeview Plus – HbbTV 2.0 | Yes | |||
| Web browser [Chrome | Opera | Other] | Odin | |||
| Digital TV reception | Digital broadcating (DVB-T / DVB-T2) | Yes / Yes | ||
| Video decoder (MPEG2 / MPEG 4) | Yes / Yes | |||
| LCN- Logical channel number and DTV Service name support | Yes | |||
| Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX | Yes / Yes / 4:3 | |||
| Subtitles | Yes | |||
| EPG- Electronic programming guide, 7 days for all services | Yes | |||
| Audio description (vision impairment aid) | Yes | |||
| Parental rating lock | Yes | |||
| Analog Tuner | Yes | |||
| Image processing | Backlight control | Yes | ||
| Light sensing | YES | |||
| Dynamic backlight control | YES | |||
| Frame rate control | No | |||
| Variable Refresh Rate (VRR) | Yes | |||
| Freesync | Freesync Premium | |||
| Auto Low Latency Mode for VRR | Yes | |||
| Local dimming/ controllable zones | No | |||
| Zoom function settings | Auto/ 16:9/ 4:3/21:9/Movie Zoom/ Dot to Dot | |||
| HDR – High Dynamic Range for luminance (DMP / Netflix / HDMI) | Yes / Yes/ Yes | |||
| HDR system (HDR10 / HDR10+ / Dolby Vision) | Yes /Yes/Yes | |||
| HLG (Hybrid Log-Gamma) for HDR | YES | |||
| HEVC (H.265) decoder | Yes | |||
| Motion enhancement and compensation (MEMC) | Yes | |||
| Picture mode | Standard, Enhanced ACR), FILMMAKER, Cinema, Engergy Saving, Dynamic, Sports | |||
| Sound | Audio power output per channel | Watt | 10W | |
| Number of speakers (Tweeter / Midrange / Woofer) | 0 /2 /0 | |||
| Automatic volume level (AVL) | Yes | |||
| Audio equalizer | Yes | |||
| Dolby Digital | Yes | |||
| Audio enhancement -Type {SRS, BBE, SAP, DBX-TV….} | Dolby ATMOS | |||
| Lip-sync adjustment | Yes | |||
| Sound mode | Standard, Enhanced(ACR), Theatre, Music, Speech, Late night, Sports. | |||
| Features | On/off timer | Yes | ||
| Power off if no signal | Yes | |||
| Sleep timer | Yes | |||
| Program lock | Yes | |||
| OSD transparency control | Yes | |||

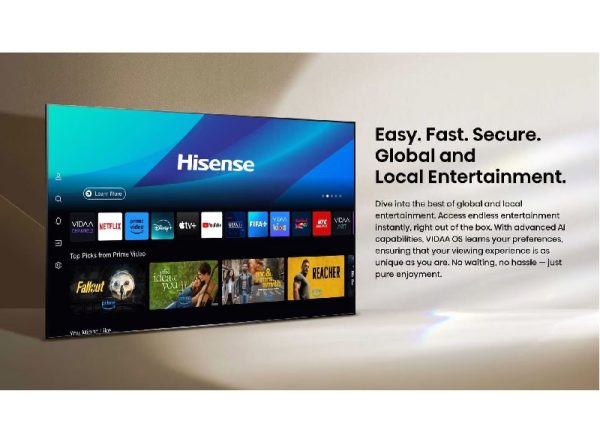

| User interface | VIDAA U8.5 | |||
| Software version OSD indication | Yes | |||
| Legal requirements: Disclaimer / Acceptance of Terms | Yes / Yes | |||
| Favourite channels list | Yes | |||
| Electronic point of sales (E-POS) | Yes | |||
| OTA- Over the air software updates | Yes | |||
| Voice command | Yes | |||
| Screen mirroring {Miracast, Anyview Cast, …} | Anyview Cast | |||
| Smartphone remote control application {Remote Now, …} | vidaa app | |||
| Replaceable demo video for Store mode | Yes | |||
| Remote control via serial port | No | |||
| USB media player | Personal Video Recorder | Yes | ||
| Time Shift | Yes | |||
| DTV Recording (EPG scheduling / start from Standby ) | Yes / Yes | |||
| DivX decoder | No | |||
| MPEG4 (H.264) / H.265 decoder | Yes / Yes | |||
| DMP- Digital media player content (Music / Video / Photos / Text) | Yes / Yes / Yes / No | |||
| DMP Auto-play | No | |||
| DMP for UHD content via USB | Yes | |||
| DMP File allocation table (FAT / FAT32 / exFAT / NTFS) | Yes / Yes / No / Yes | |||
| PVR File allocation table (FAT / FAT32 / exFAT / NTFS) | Yes / Yes / No / Yes | |||
| Hotel lock | Protected Hotel lock submenu (Password / fixed code) | No / Yes | ||
| Clone function for programs, sound and image settings. | Yes | |||
| Sub-menu lock, including tuning lock | Yes | |||
| Keyboard lock | Yes | |||
| Maximum volume lock | Yes | |||
| Power on volume | Yes | |||
| Power on, apply default sound/image settings | No | |||
| Power on source selection | Yes | |||
| Power on RF channel selection | Yes | |||
| Power on mode (On / Standby / Last) | Yes / Yes / Yes | |||
| Inputs access (Enable / Disable) | Yes | |||
| Hardware | Processor / Cores | MT9618GADTAB | ||
| Dual Tuner | No | |||
| Colour (Front bezel, rear, stand) | Tarnish / Black / Tarnish | |||
| Speakers mounted in enclosure | Yes | |||
| Mains power switch | No | |||
| Swivel base | No | |||
| Compact packaging | Yes | |||
| Supply range [Voltage / Frequency ] | Volt / Hz | AC100~240V,50Hz/60Hz | ||
| Standby consumption | Watt | < 0.5W | ||
| Maximum time delay Power On to sound an image | sec | 30 | ||
| Installation | Stand area (Width / Depth) | mm | 976×298 | |
| Wall mount dimensions (Horiz x Vert) | mm | 200×400 | ||
| Wall mount, screw thread | mm | M6/15 | ||
| VESA compliance | Yes | |||
| Detachable power cord | Yes | |||
| Power cord length | cm | 155 | ||
| Accessories | Remote controller (Technology / Part number ) | IR /ERF6Q80HL | ||
| Battery (size / quantity) | AAA / 2 | |||
| User manual (Available online) / Quick setup guide (Print) | 1 / 1 | |||
| Warranty [In User manual | In separate sheet] | In separate sheet | |||
| Skype camera (Qty / Part number) | – | |||
| 3D glasses type [Passive | Shutter] / Link [RF | IR | BT] | – | |||
| 3D glasses (Qty / Part number) | – | |||
| Dimensions | Dimensions with stand (W x H x D) | mm | 1233×751×298 | |
| Dimensions without stand (W x H x D) | mm | 1233×717×80 | ||
| Carton box dimensions (W x H x D) | mm | 1400×135×846 | ||
| Net weight (with stand / without stand) | kg | 11.4/11.0 | ||
| Gross weight | kg | 16.8 | ||
| Container load (20ft / 40ft / 40ft HC) | 140/284/426 | |||
| Licensing and certification | EMC- Electromagnetic Compatibility | Yes | ||
| CB- Electrical safety | Yes | |||
| HDMI | Yes (Hisense internal test) | |||
| Dolby Digital | Yes | |||
| MEPS- Test report | No | |||
| ROHS | No | |||
| Electrical safety conformity for Australia | Yes | |||
| Documentation | CB report and certificate | Yes | ||
| EMC report and certificate | Yes | |||
| Power cord, plug and connector Australian safety approval | Yes | |||
| (Required before mass production) |
| Weight | 70 kg |
|---|---|
| Dimensions | 86 × 140 × 15 cm |
